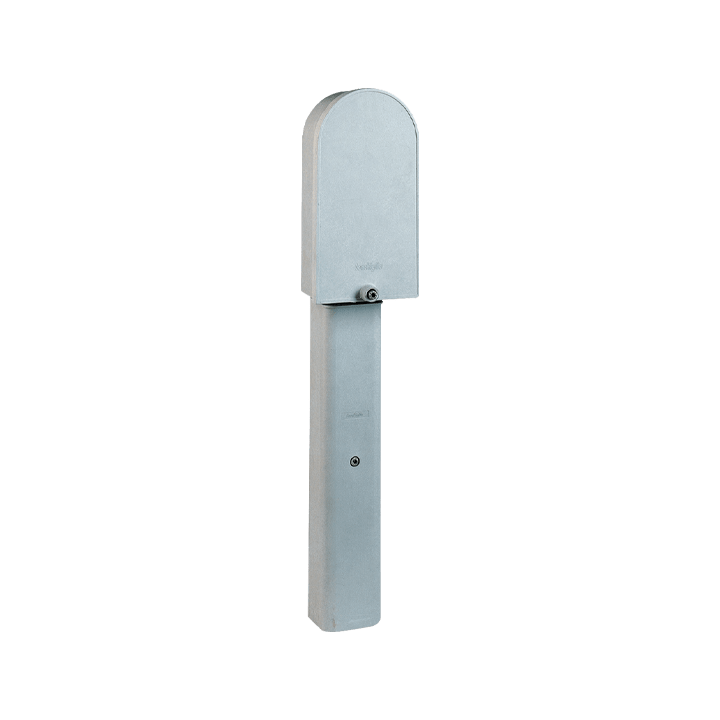

Materials Bottom base pre-engineered, in SCF3/CN and SCF3/P versions, for insertion of diameter 34 tubes, in grey RAL 7040 color thermoplastic material. Plaque to adapt to the pole made of grey RAL 7040 color thermoplastic material. Characteristics Base pre-engineered for connection of cover piece for cable routing. The /T Model is already complete with cover piece. Protection degree IP 43 in compliance with CEI EN 60529, IK 10 according to CEI EN 62262. Version/CN: For 114-194 diam. poles Fixed to the poles by means of screws or 3/4" Band-It tape. Version/T: For 114-194 diam. poles Cable input/output protected by modular lower cover piece (100 x 486 mm). Fixed to the poles by means of screws or 3/4" Band-It tape. Version/P: To fix to walls and flat surfaces. Cable input/output from bottom base for tubes pre-engineered with 3 diam. 34 or 28 break-through inlets. Fixed to the pole by means of screws or plugs. Version/AF: SCF3/AF45 Model for 114-168 diameter poles SCF3/AF70 Model for 114-194 diameter poles Cable input/output from inside the pole.
