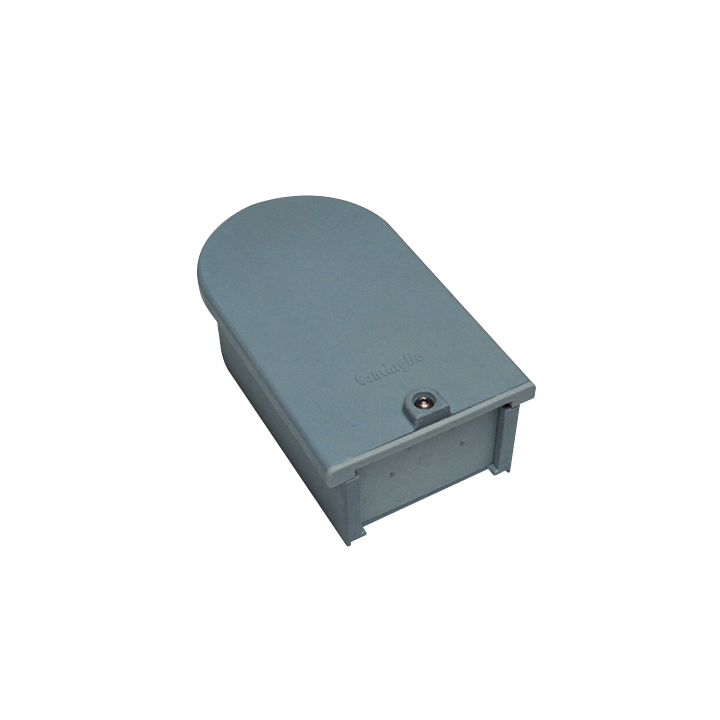

Derivation box Fiberglass - 226x122x80 - empty/ wall install.

CODE 054110044
SIGN SCF1/P

Materials Base and pole adapter plaque made of thermoplastic material reinforced with fiberglass (Pa6-R). Grey RAL 7035 color. Characteristics Closed bottom base which can be drilled in order to apply two diameter 32 mm tube locking unions. Base pre-engineered for connection to cover piece, in order to route cables. The base can be used in case of replacement of old aluminium boxes of equal size, because the existing fixing on pole coincide. Wiring can be made in Class II CEI 64-8 Protection degree IP 44 in compliance with CEI EN 60529, IK 10 according to CEI EN 62262. Version/CN: For 89 to 140 mm diameter poles. Cable input/output from bottom base pre-engineered for tubes with max. 2 diameter 32 mm inlets. Fixed to the pole with screws or 1/2" to 3/4" Band-it tape using plaque. Version/P: For installation on flat surfaces (walls, square and rectangular section poles, flat side of polygonal poles). Cable input/output from bottom base preengineered for tubes with max. 2 diameter 32 mm inlets. Fixed to walls with plugs and screws and to poles with M5 metric screws. Versions with cover piece: Versions made by combining the SCF2/CN pull box with the relative Kit for use with the KTPF/70/2 cover piece.

DOWNLOAD CAD
Download
Download PDF
Characteristics table
