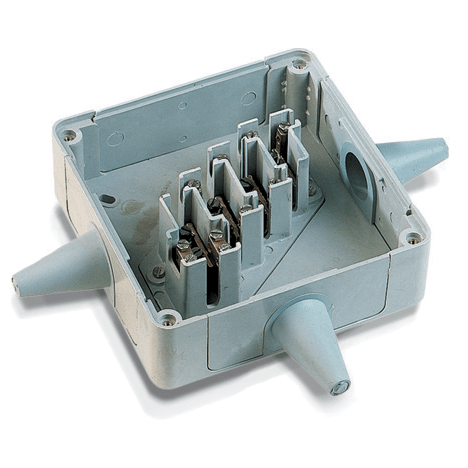

Derivation box - Fiberglass/equipped - 200x200

CODE 021820139
SIGN USV25/A/3

Materials Box, cover and door moulded in SMC (fiberglass). Grey RAL 7040 color. Moulded thermoplastic conical fairleads. Characteristics Doors and fairleads fixed by means of coulisse system. AISI 304 stainless steel loss proof cover fixing screws. Can be sealed. For outdoor use, wall mounting or built-in installation. Complete with nodal terminal blocks. Applications/Installations Can be used to make nodes and shunts in L.V. lines for up to 25 mmq. Protection degree IP 43 in compliance with CEI EN 60529; IK 08 according to CEI EN 62262.

DOWNLOAD CAD
Download
Download PDF
Characteristics table
