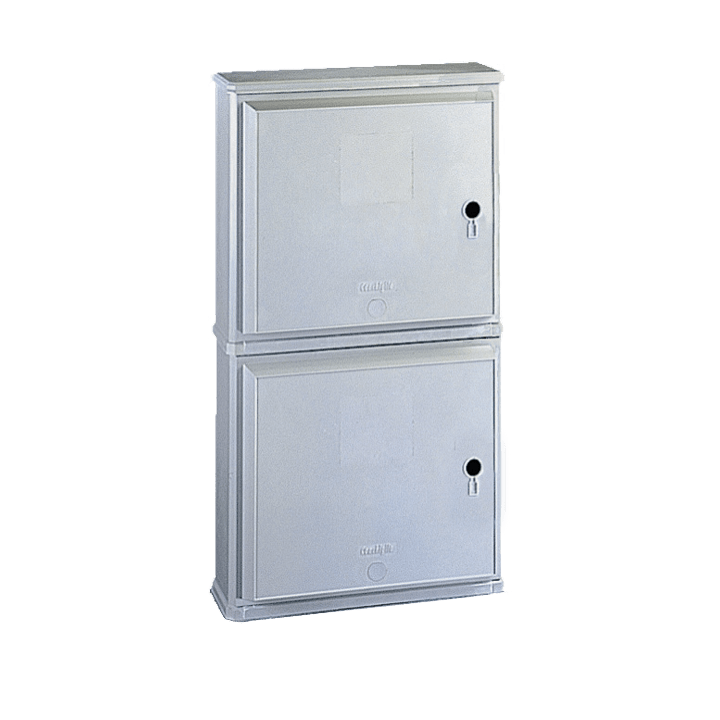

Fiberglass enclosure CV 714x1290x271 -2compartments / without lock

CODE 074107806
SIGN BV4M/0-WLP

Materials Moulded in SMC (fiberglass) - grey RAL 7040 color. Internal hinges in polyaryla-mide-based fiberglass-reinforced thermoplastic resin (IXEF). External metal parts made of stainless steel or tropicalized steel painted grey and electrically insulated from the inside. Fiberglass lock body built into the door. Polyamide resin handle. Lock pivot pin in aluminium alloy. Rods and poles interiors made of steel with 321 GEOMET treatment. Characteristics In compliance with CEI EN 62208 standards. Rated insulation voltage Ui 690V. Hinged door in relief complete with cremone-type bolt operated by a retracting handle with three-point closing mechanism to ensure that the door adheres perfectly. Handle pre-engineered for profile cylinder to DIN 18252 standards with Y21 individually-keyed safety lock (for bottom compartment) and Y12 (for top compartment). Partition dividing compartments complete with cable glands. Air intakes below and under the roof for natural internal ventilation. Mounting plate equipped with brass inserts buried in the moulding so as to allow equipment to be applied directly or through the mounting plate itsel. For choice accessories, refer to the enclosure single constituent compartment. Cubicle supplied on pallet in standard pack containing four pieces. For self-standing floor installation with anchor frame (to be ordered separately). Protection degree IP 44 in compliance with CEI 60529, IK 10 according to CEI EN 62262. Standard version complete with lock with retractable lever. WL Version – Without lock and suitable exclusively for use of locks series SCS-SCM.. The effective dimensions shown in the Table indicate the maximum space available for the equipment in compliance with the features specified by standard CEI EN 62208 (effective protected space).

DOWNLOAD CAD
Download
Download PDF
Characteristics table
