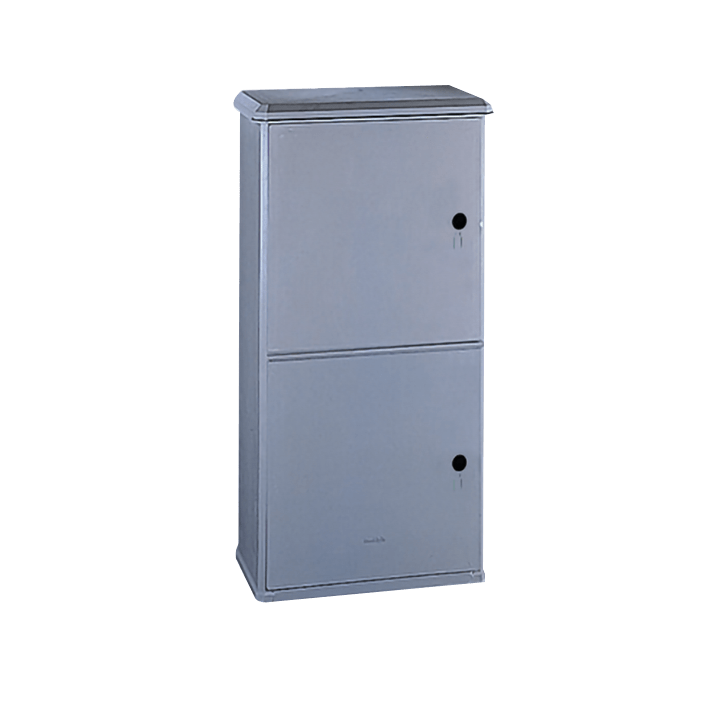

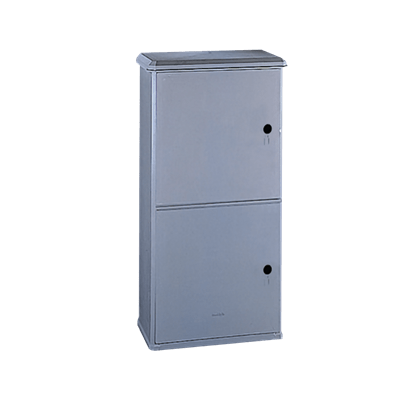

Fiberglass enclosure CV 720x1394x450 - 2compartments / without lock

CODE 073341117
SIGN CVHP2/0-WL

Materials Moulded in SMC (fiberglass) grey RAL 7040 color. Internal hinges in polyaryla-mide-based fiberglassreinforced thermoplastic resin (IXEF). External metal parts made of stainless steel or tropicalized steel painted grey and electrically insulated from the inside. Characteristics In compliance with CEI EN 62208 standards. Rated insulation voltage Ui 690V. PHinged door complete with cremone-type bolt operated by a retracting handle with Y21 individually-keyed safety lock. Air intakes below and under the roof for natural internal ventilation. Mounting plate equipped with brass inserts buried in the moulding so as to allow equipment to be applied directly or through the mounting plate itself. Partition complete with fairleads. For self-standing floor installation with anchor frame (to be ordered separately). Protection degree IP 44 in compliance with CEI EN 60529, IK 10 CEI EN 62262. WL versions - without lock. Provision for applications SCS 86/..- SCM86/.. series locks to be ordered separately. Or installation independent floor frame anchor included in the supply. (CV../ T). The effective dimensions shown in the Table indicate the maximum space available for the equipment in compliance with the features specified by standard CEI EN 62208 (effective protected space).

DOWNLOAD CAD
Download
Download PDF
Characteristics table
