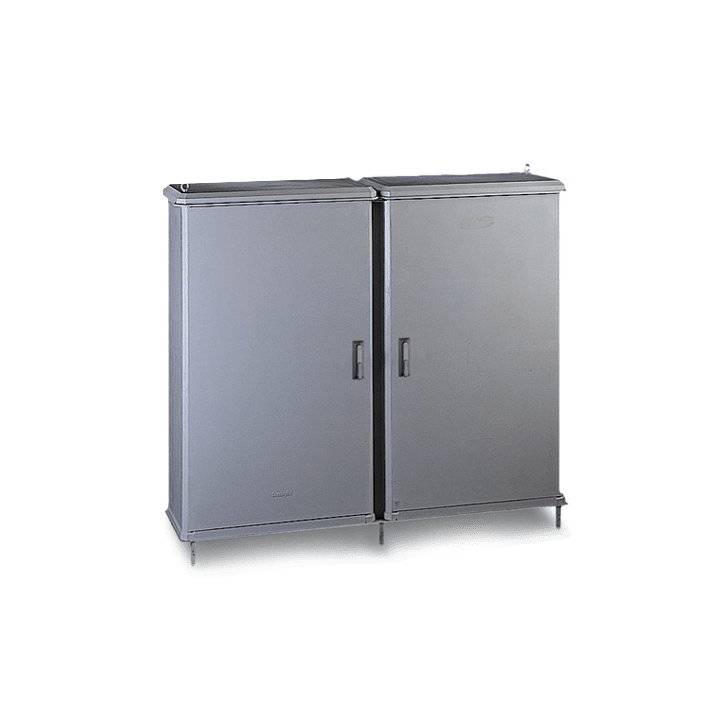

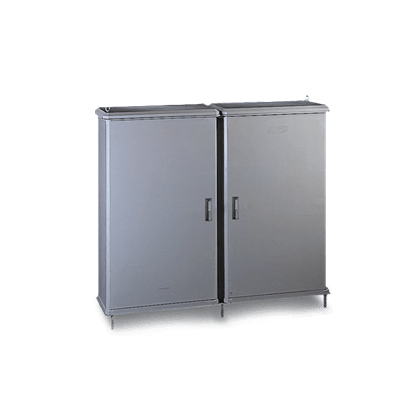

Fiberglass modular enclosure-CV 1676x1394x900 / bifrontale

CODE 074512229
SIGN CML/22/A2

Materials Moulded in SMC (fiberglass) - grey RAL 7040 color. Internal hinges in polyaryla-mide-based fiberglass- reinforced thermoplastic resin (IXEF). External metal parts made of stainless steel or hot-dip galvanized steel according to standard CEI 7-6, electrically insulated from the inside. Characteristics Hinged 2 wings doors complete with cremone-type bolt operated by a retracting handlee with Y21 individually keyed safety lock. Lower and under-roof air vents for natural ventilation inside. For self-standing floor installation with anchor frame. Lifting eyebolts. Protection degree IP 44 in compliance with CEI EN 60529, IK 10 according to CEI EN 62262. Models CM.../../A2 cannot be fitted with mounting plates. Internal compartment open. Possibility to access to the equipment on both sides (front and rear). Applications: to ensure protection to the bulky equipment by encapsulation

DOWNLOAD CAD
Download
Download PDF
Characteristics table
Loading
Catalogues
Technical drawings
Accessories
