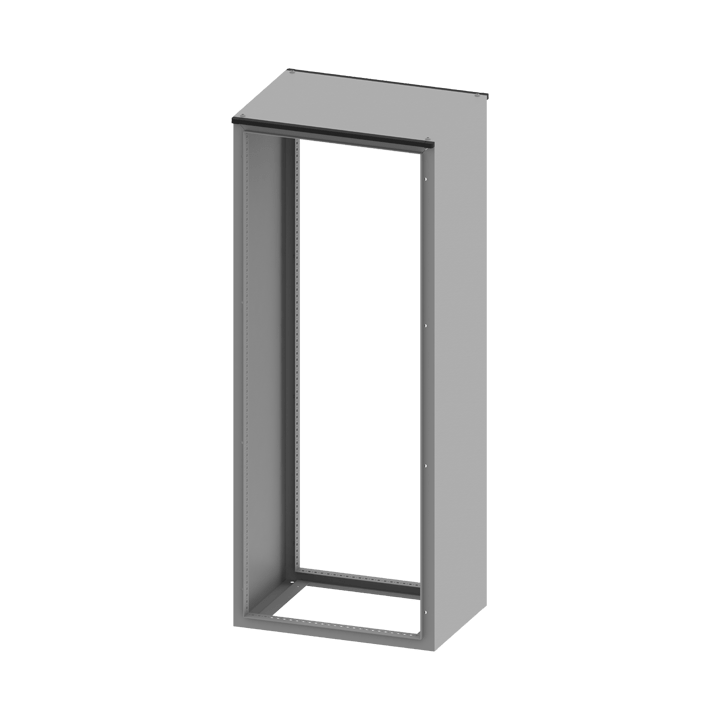

CAE Compact Cabinet Structure only 1000x800x400

CODE R5CAE1084S
ETIM CLASS EC002534

CAE Compact Cabinet Structure only. Structure: solid sides and top, manufactured of 15/10 steel, painted RAL 7035 with textured epoxy-polyester, adjustable cable gland bottom. Reae panel: 15/10 thick steel, painted textured RAL 7035, 15/10 thick steel, with rounded safety edges. From 4 to 10 points of fastening to the structure. Door: 20/10 thick steel, painted textured RAL 7035, with rounded safety edges. Complete with an internal reinforcement frame made of galvanized tubular profile, 4 closing points, 4 hinges and an escutcheon with a double-bit lock insert Ø3 mm. Protection degree: IP 55 complies with NEMA 4. IP/NEMA protection degree shown in the table below is referred to a cabinet/bayed cabinets complete with a door and a rear panel.

DOWNLOAD CAD
Download
Download PDF
Characteristics table
