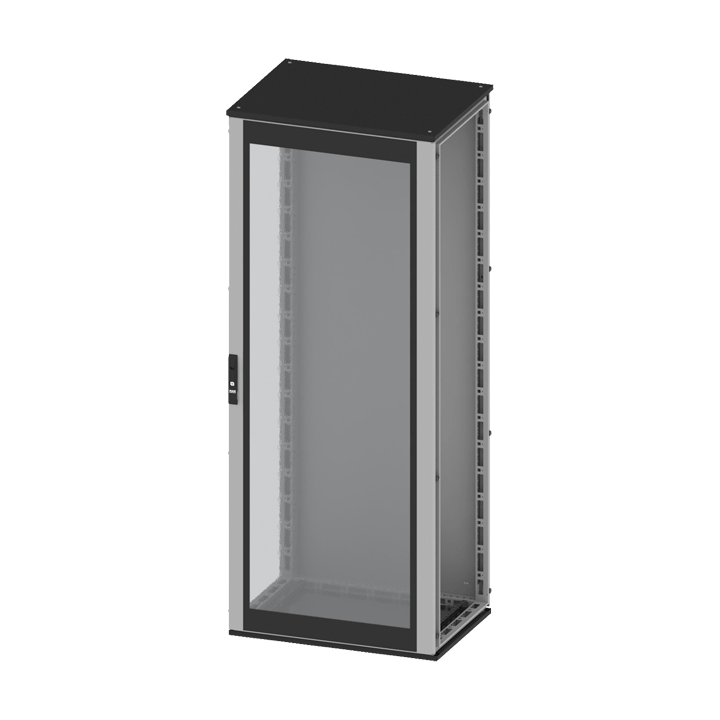

CQE Modular Cabinets with Screen-Printed Glazed Door 2000x600x800

CODE R5CQE2068V
ETIM CLASS EC002534

CQE modular cabinets with screen-printed glazed door, ssembled of a closed profile manufactured of 15/10 thick steel, painted textured RAL 7035. Roof and base, manufactured of 15/10 thick steel, painted textured RAL 7011, removable. The bottom is 15/10 thick galvanized steel, adjustable cable gland. Rear panel, manufactured of 15/10 thick steel, painted textured RAL 7035, with rounded safety edges and 8 points of fastening to the structure. The door is 20/10 thick steel, painted textured RAL 7035, with rounded safety edges. 4 closing points, 4 hinges and an escutcheon with a double-bit lock insert Ø3 mm. 40/10 thick safety screen-printed smoked glass. Impact resistance degree as per IEC EN 62208; EN50102: IK09. Enclosure completed protection degree IP 55.

DOWNLOAD CAD
Download
Download PDF
Characteristics table
