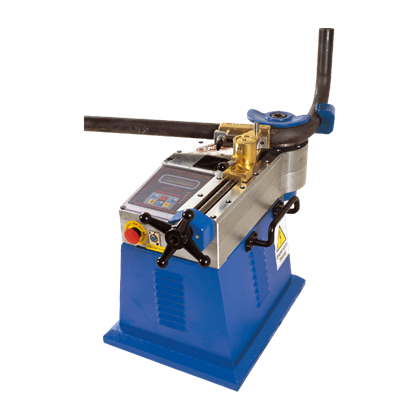

Programmable digital conduit bending machine

CODICE 6242P-1650

Programmable digital conduit bending machine. A portable electronic conduit bending machine on which it is possible to set the angle of bending and automatic stop, resulting in quantities of repetitive bends being produced with extreme accuracy. It is capable of programming angles of bends, with the recovery of material, with a back up battery, for storing data in its memory. Minimum maintenance costs, powerful yet silent single phase induction motor with overload controlling system. Comes complete with a fault diagnostic and axis viewing and checking system. Possibility of modifying (optional extra only available for part no. 6242-1650) a two-axis positioner to allow for the production of a number of bends on different surfaces. Supplied complete with a metal case in which to store the machine and its accessories, and the Ø16mm, Ø20mm, Ø25mm, Ø32mm, Ø40mm, Ø50mm dies and counter-dies. The tool, part no. 6242-1650, also comes complete with a sturdy pedestal fitted with wheels. Weight, part no. 6242-1650: 80 Kg (machine body only) Weight, part no. 6242P-1650: 50 Kg (machine body only) Bending capability: Galvanised steel conduit, part no. 6008: from Ø16 mm to Ø50 mm * AISI 304 stainless steel conduit, part no. 6700: from Ø16 mm to Ø40 mm

DOWNLOAD CAD
Download
Download PDF
Caratteristiche tecniche
